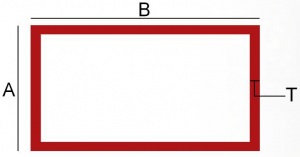

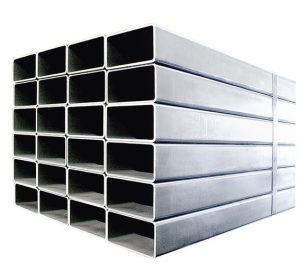

1- Rectangular pipe size slitting - مقاسات حز المواسير المستطيلة

(by Dimensions) Thickness (T) mm

Pipe Size	.5	.6	.7	.8	.9	1	1.2	1.5	2	2.3	2.5	3
15X25	79	79	79	79	79	78	78	78	76	-	-	-
20X30	100	100	99	99	99	98	98	97	97	96	96	95
20X40		-	119	119	119	119	118	118	117	116	116	115
30X40		-	-	141	140	140	139	138	137	136	136	135
30X50		-	-	-	150	150	149	149	148	147	147	146
30X60		-	-	-	170	169	169	168	167	166	165	165
40X60		-	-	-	-	189	188	187	186	186	185	184
40X70		-	-	-	-	-	218	217	216	215	214	214
40X80		-	-	-	-	-	238	237	237	236	235	234
40X100		-	-	-	-	-	278	278	278	276	275	275
50X90		-	-	-	-	-	278	278	278	276	275	275

(by Weight) Thickness (T) mm

Pipe Size	.5	.6	.7	.8	.9	1	1.2	1.5	2	2.3	2.5	3
15X25	1.84	2.23	2.60	2.98	3.35	3.67	4.41	5.44	7.16	8.12	-	-
20X30	2.33	2.83	3.26	3.73	4.2	4.66	5.54	6.85	9.14	10.4	11.3	13.42
20X40	-	-	3.92	4.48	5.04	5.6	6.66	8.26	10.9	12.45	13.25	16.25
30X40	-	-	-	5.31	5.93	6.59	7.87	9.75	12.9	14.73	16	18.93
30X50	-	-	-	-	6.35	7.05	8.42	10.53	13.94	15.63	17.63	20.62
30X60	-	-	-	-	7.2	8	99.5	11.86	15.73	17.98	19.42	23.31
40X60	-	-	-	-	8.01	8.85	10.62	13.21	17.52	20.15	21.78	26
40X70	-	-	-	-	-	-	12.23	15.3	20.34	23.18	25.19	30.23
40X80	-	-	-	-	-	-	13.22	16.74	22.23	25.45	27.6	33.06
40X100	-	-	-	-	-	-	15.7	19.6	25.9	29.7	32.38	38.85
50X90	-	-	-	-	-	-	15.7	16.9	25.9	29.7	32.38	38.85

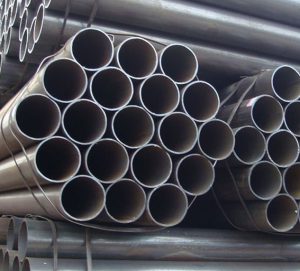

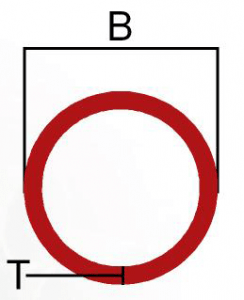

2- Round pipe size slitting - مقاسات حز المواسير المستديرة

(by Dimensions) Thickness (T) mm

size(mm)	.5	.6	.7	.8	.9	1	1.2	1.5	2	2.3	2.5	3
16	50	50	50	50	50	49	48
19	60	60	60	60	59	59	58	-	-	-	-	-
22	69	69	69	69	69	68	68	67	65	-	-	-
25	79	79	79	79	79	78	78	77	76	75
32	100	100	99	99	99	98	98	97	96	95	95	95
38	-	119	119	119	119	8	118	118	117	116	116	115
42			132	132	132	131	131	130	129	128	127	126
45		-	-	141	141	140	139	138	137	136	136	135
48.3		-	-	150	150	150	150	149	148	147	146	145
55				170	169	169	169	168	167	166	165	165
60.3		-	-	-	189	188	188	187	187	186	185	184
70		-	-	-	-	-	218	217	216	215	214	214
76		-	-	-	-	-	238	237	236	235	234	234
89							278	278	278	276	275	275

(by Weight) Weight (KG) (B)

size(mm)	.5	.6	.7	.8	.9	1	1.2	1.5	2	2.3	2.5	3
16	1.117	1.4	1.64	1.9	2.1	2.35	2.8
19	1.4	1.69	1.97	2.22	2.5	2.77	3.27	4.2	-	-	-	-
22	1.64	1.95	2.27	2.6	2.92	3.2	3.84	4.73	6.22	-	-	-
25	1.84	2.23	2.6	2.98	3.35	3.67	4.41	5.44	7.16	8.12
32	2.33	2.83	3.26	3.73	4.2	4.66	5.44	6.85	9.14	10.4	11.3	13.42
38			3.92	4.48	5.04	5.6	6.66	8.26	10.9	12.45	13.25	16.25
42			4.35	4.97	5.5	6.1	7.34	9.1	12.2	13.9	15.1	18.2
45				5.31	5.93	6.59	7.87	9.75	12.9	14.73	16	18.93
48.3					6.35	7.05	8.42	10.53	13.94	15.63	17.63	20.62
55					7.2	8	9.55	11.86	15.73	17.98	19.42	23.31
60.3		-	-	-	8.01	8.85	10.62	13.21	17.52	20.15	21.78	26
70		-	-	-	-	-	12.32	15.33	20.34	23.18	25.19	30.23
76		-	-	-	-	-	13.22	16.74	22.23	25.45	27.6	33.06
89							15.7	19.6	25.9	29.7	32.38	38.85

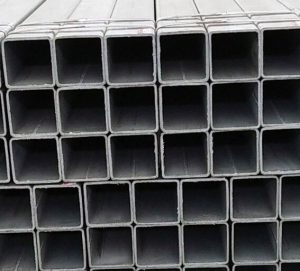

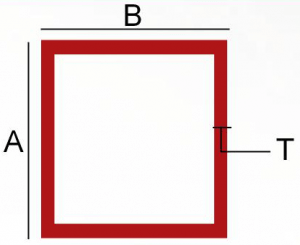

1- Square pipe size slitting - مقاسات حز المواسير المربعة

(by Weight) Thickness (T) mm

Pipe Size	.5	.6	.7	.8	.9	1	1.2	1.5	2	2.3	2.5	3
16X16	60	60	60	60	59	59	58	-	-	-	-	-
18X18	69	69	69	69	69	68	68	67	65	-	-	-
20X20	79	79	79	79	79	78	78	77	76	76	-	-
25X25	100	100	99	99	99	99	98	97	97	96	96	95
30X30		-	119	119	119	119	118	118	117	116	116	115
35X35		-	-	141	140	140	139	138	137	136	136	135
40X40		-	-	-	150	150	149	149	148	147	147	146
50X50		-	-	-	189	188	188	187	186	186	185	184
60X60		-	-	-	-	-	238	237	236	235	234	234
70X70		-	-	-	-	-	278	278	278	276	275	275

(by Dimensions) Thickness (T) mm

Pipe Size	.5	.6	.7	.8	.9	1	1.2	1.5	2	2.3	2.5	3
16X16	1.4	1.69	1.97	2.22	2.5	2.77	3.27	4.2	-	-	-	-
18X18	1.64	1.95	2.27	2.6	2.92	3.2	3.84	4.73	6.22
20X20	1.84	2.23	2.60	2.98	3.35	3.67	4.41	5.44	7.16	-	-	-
25X25	2.33	2.83	3.30	3.73	4.20	4.62	5.54	6.85	9.04	10.39	11.30	13.42
30X30		-	3.92	4.48	5.04	5.6	6.66	8.26	10.9	12.45	13.25	16.25
35X35		-	-	5.31	5.93	6.59	7.87	9.75	12.9	14.73	16	18.93
40X40		-	-	-	6.35	7.05	8.42	10.53	13.94	15.63	17.63	20.62
50X50		-	-	-	8.01	8.85	10.62	13.21	17.52	20.5	21.78	26
60X60	-	-	-	-	-	-	13.22	16.74	22.23	25.45	27.6	33.06
70X70	-	-	-	-	-	-	15.7	19.6	25.9	29.7	32.38	38.85

All Tubes are delivered in Standard pipe Length 6 Meter.
All Custom Length up to 10 Meters will be Available
